Home > Products > Multipurpose Sensor > DML-100 Multipurpose Sensor

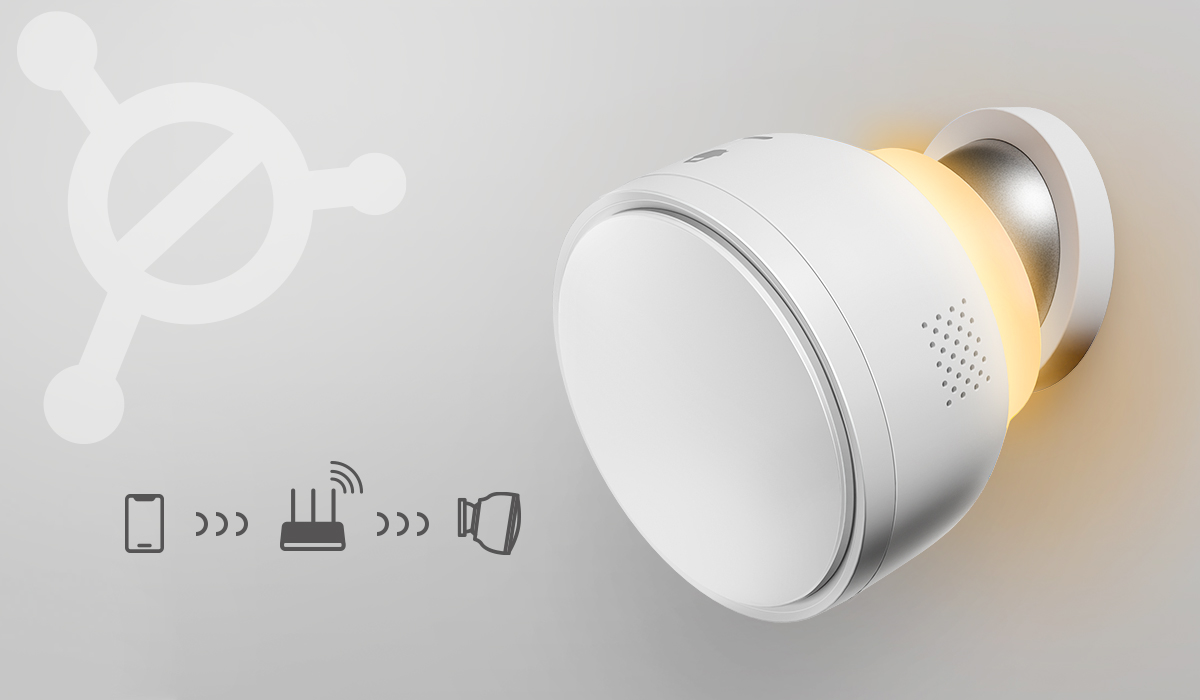

No Hub

Directly connects to your WiFi network via the free smart phone App, DreamCatcher Life. No need to purchase an additional hub.


Mount the sensor on the wall with the magnetic base and double-sided tape or screws (included in the package). Or place it on desktop with provided desktop bracket.


The sensor uses passive infrared technology to detect heat and movement for body heat, so you get alerts when it detects unusual movements in Away mode. Adjust the sensitivity setting on the app.

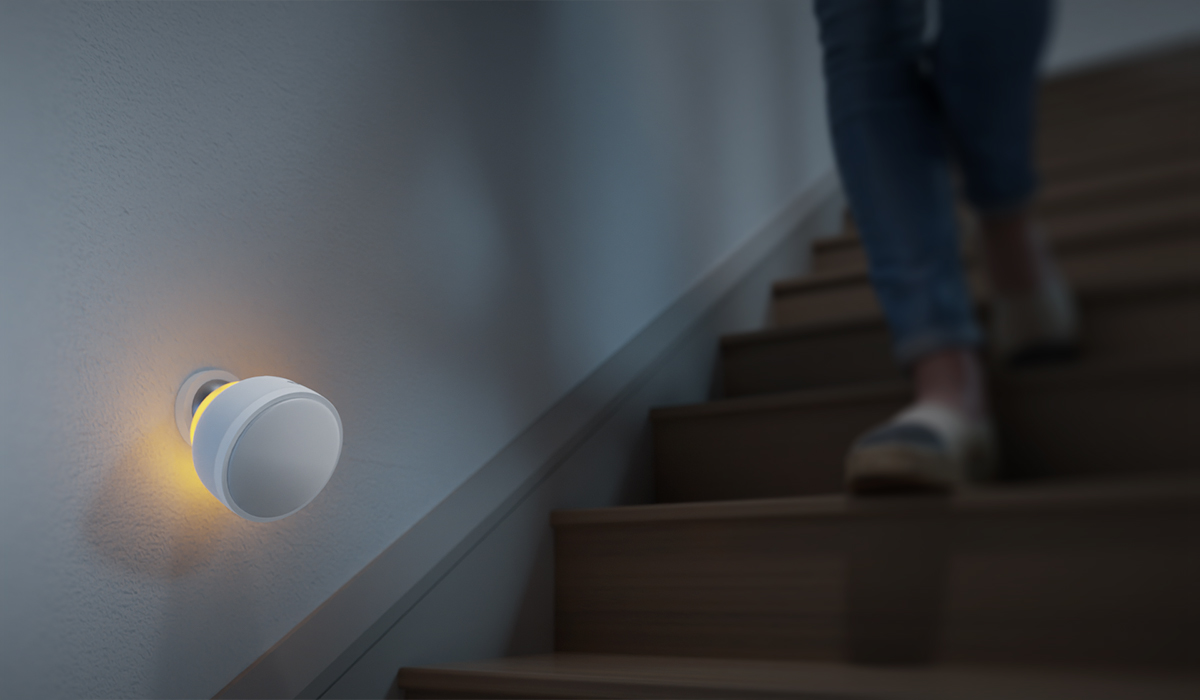

In Home mode, the sensor works as a motion-triggered night light. In Away mode, the sensor detects for possible intrusion with PIR.


In Home mode, the sensor light will automatically turn on upon motion detection and automatically turn off after 15 seconds of inactivity.

3 Types
of Alert

Upon intruder detection, you will be alerted in the following three ways: siren sounds, LED flashes or via an app push notification.


Get notified when the surrounding temperature, humidity and/or ambient light levles exceed your preset values. In Away mode, the sensor can detect for smoke alarm sound within 5 meters and send your alerts (this function is default off).


The sensor has a built-in rechargeable battery that can be easily charged via a Type-C cable (included in the package).

Voice & App Control

Set up the sensor via WiFi or Bluetooth, and then manage the sensor with the DreamCatcher Life app or via voice control.

Ambient Light

When ambient light is bright enough for your activity, the sensor will not turn on the embedded light when it detects motion, to help you save on energy spending.

Smart &
Secure Home

The Multipurpose Sensor can optionally work together with other Chuango smart devices in the app, such as security alarm systems, cameras, Wi-Fi light bulbs and so on. As an example: When the sensor is triggered by human motion, the camera starts recording a video clip.


Model No.:DML-100
Power supply:DC 5V (18650 rechargeable battery)
Wireless:Wi-Fi 2.4GHz
Standby time:around 60* days
Detection scope: 5-10 meters/95°
Pet immunity: <25kg
Casing material: PC+ABS
Operating temperature: 0 to 50 ℃
Operating humidity: ≤ 90% RH
Sensor dimensions (L x Wx H): 85 x 85 x 84.5 mm
Bracket dimensions (L x W x H): 98.5x 98.5 x 101.5 mm

*Under the circumstances of stable network, estimated by 8 night light triggers per day and two alarm triggers per month. If the network is unstable or the signal is poor, the standby time will be shortened.
